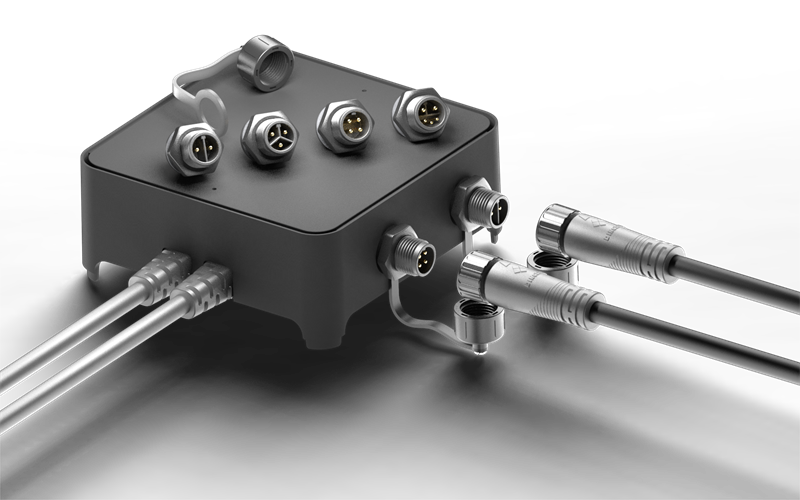

M12 Male Socket Plastic Type Panel Mount Waterproof Connector
Products are available for wholesale and customization
Quantity:
| Specification: |
| Number of Poles | 2pin | 3pin | 4pin | 2+3pin |
| Voltage Rating | 250V | 250V | 125V | 250V / 50V |
| Current Rating | 10A | 10A | 10A | 10A / 5A |
| Wire Section | 0.5mm² | 0.5mm² | 0.5mm² | 0.5mm²-1.0mm² |
| -1.5mm² | -1.5mm² | -1.0mm² | 0.25mm²-0.5mm² | |
| Temperature Rating | -40 ℃-105 ℃ | |||
| IP Code | IP 67 | |||
| Housing Material | PA66 | |||
| Contact Material | Gold Plated Copper Alloy | |||
"Product Features
►High-performance thermoplastic PA material, high strength,
strong weather resistance
► Standard M12 thread locking, more reliable outdoor protection
► Degree of protection IP67/IP68
► Contact parts are gold-plated
► The product realizes the multi-core belt partition design,
making it safer to use
► Wire specifications and lengths can be customized"
Product Application
Street lights
Landscape Lighting
Solar energy
Plant lighting
