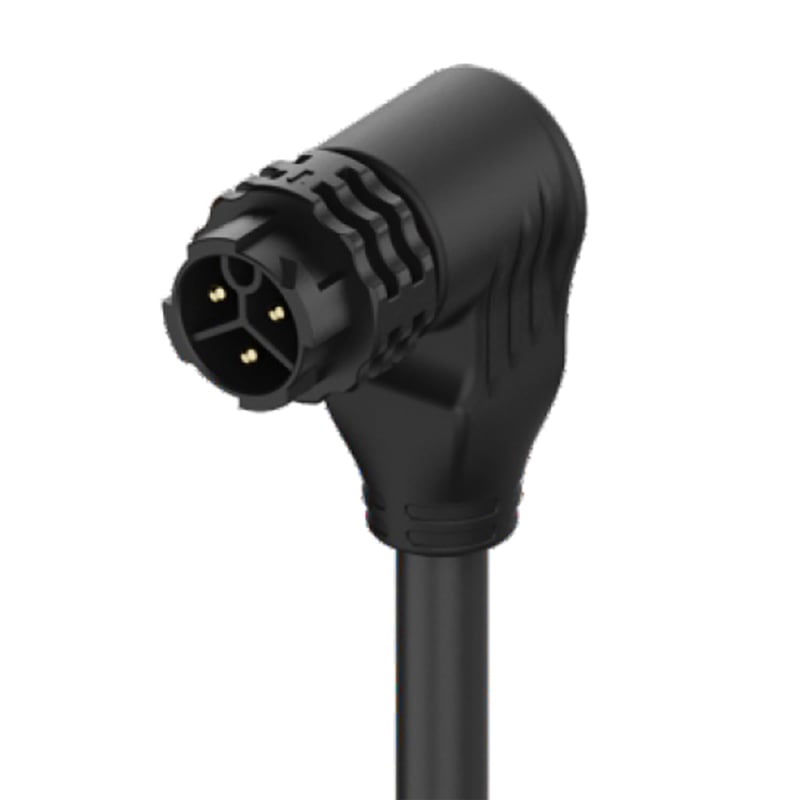

Right Angle Push Lock M20 Waterproof Connector with Customized Cable
Products are available for wholesale and customization
Quantity:
Specification:
| Number of Poles | 2pin | 3pin | 4pin | 5pin | 6pin | 7pin | 8pin | 9pin |
| Voltage Rating | 250V | 250V | 250V | 250V | 125V | 50V | 50V | 50V |
| Current Rating | 20A | 20A | 15A | 15A | 10A | 5A | 5A | 5A |
| Wire Section | 0.75mm² | 0.75mm² | 0.5mm² | 0.5mm² | 0.25mm² | 0.25mm² | 0.25mm² | 0.25mm² |
| -2.5mm² | -2.5mm² | -2.0mm² | -2.0mm² | -0.75mm² | -0.5mm² | -0.5mm² | -0.5mm² | |
| Temperature Rating | -40 ℃-105 ℃ | |||||||
| IP Code | IP65/ IP67 | |||||||
| Housing Material | high temperature thermoplastic | |||||||
| Contact Material | Gold Plated Copper Alloy | |||||||
Product Application
Street lights
Landscape Lighting
Solar energy
Plant lighting
