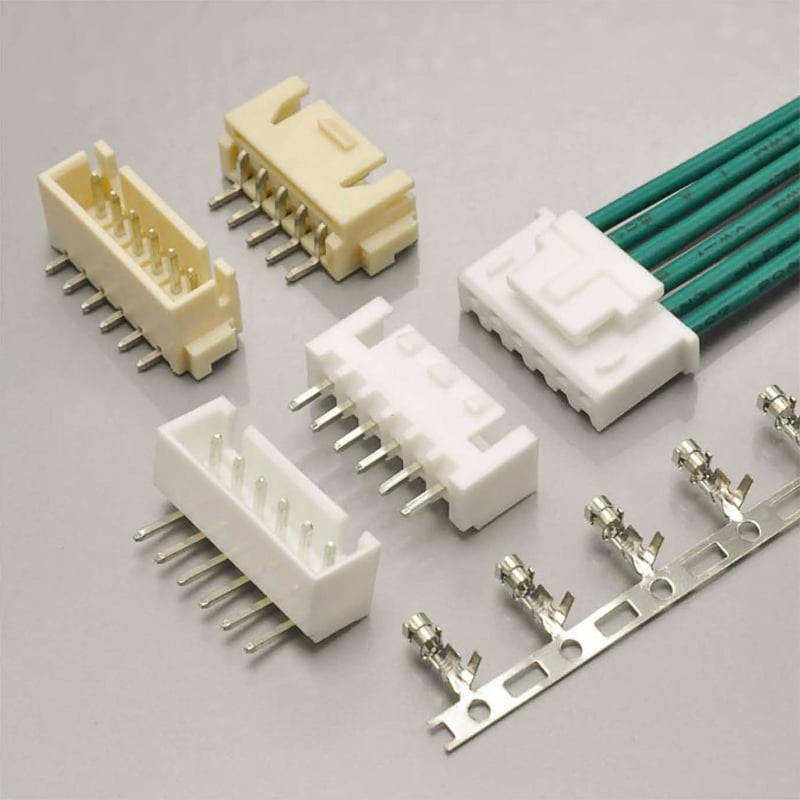

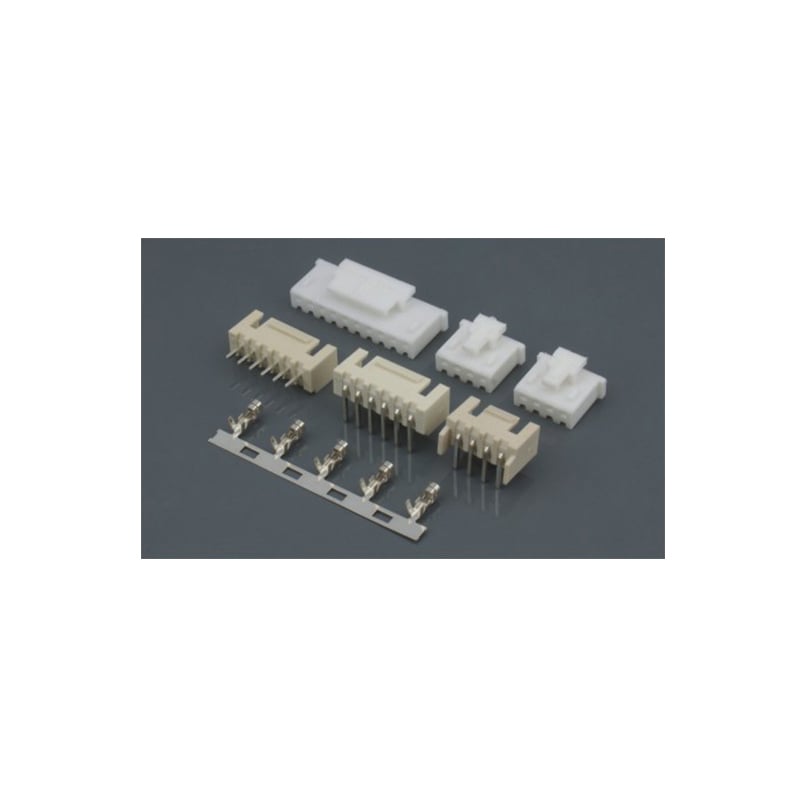

A2502(XHB) Connector | 2.5mm Pitch
Products are available for wholesale and customization
Quantity:
Specification:
| Poies | 2~16 |
| ApplicableWires | AWG #22~#28 |
| Operating temperature | -25C~+85°C |
| Voltage Rating | 250V AC/DC |
| Current Rating | 3.0AAC/DC |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥1000MΩ |
| Withstand Voltage | 1000VAC/minute |
| Housing | Thermoplastic |
| Terminal | Phosphor bronze |
| Wafer | Thermoplastic |
Product Application
Street lights
Landscape Lighting
Solar energy
Plant lighting
