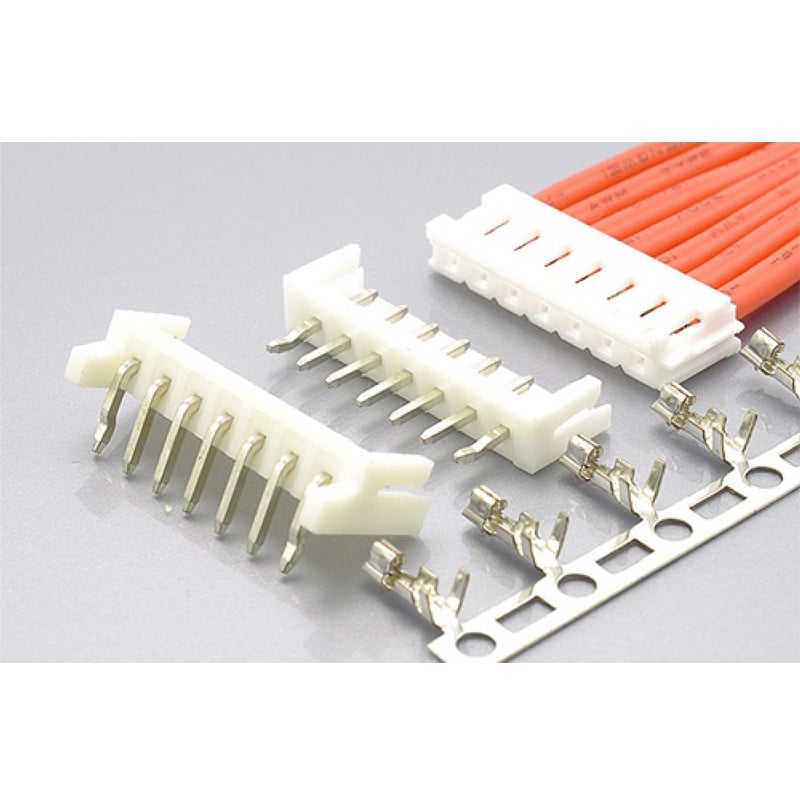

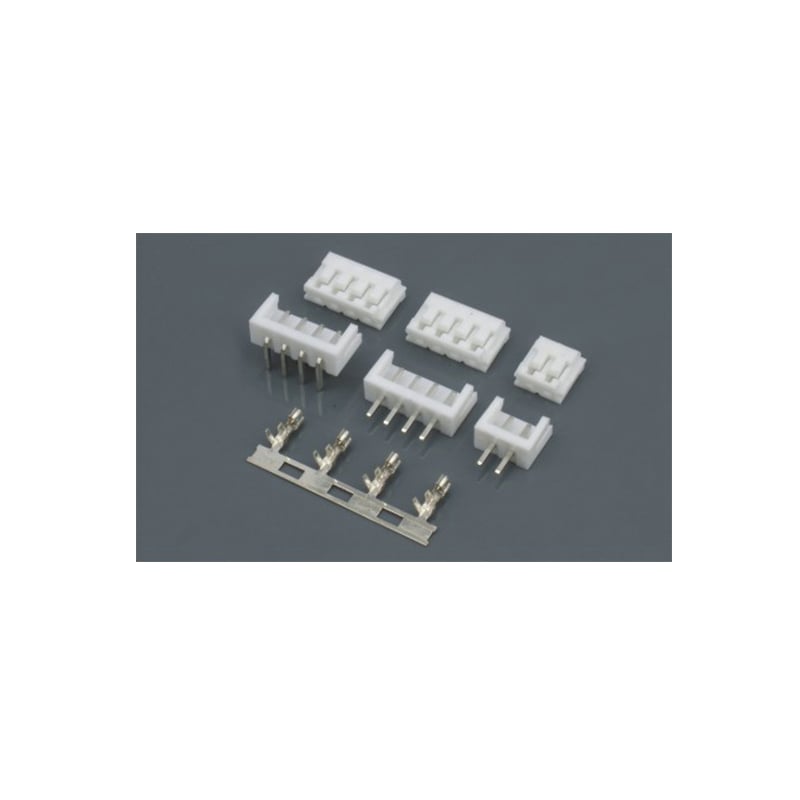

EH 2.5mm pitch Wire to Board Connectors

EH 2.5mm pitch Wire to Board Connectors

EH 2.5mm pitch Wire to Board Connectors

EH 2.5mm pitch Wire to Board Connectors

Products are available for wholesale and customization

Quantity:

Specification:

Poies	2~16
ApplicableWires	AWG #22~#28
Operating temperature	-25C~+85°C
Voltage Rating	250V AC/DC
Current Rating	3.0AAC/DC
Contact Resistance	≤20mΩ
Insulation Resistance	≥1000MΩ
Withstand Voltage	1000VAC/minute
Housing	Thermoplastic
Terminal	Phosphor bronze
Wafer	Thermoplastic

Street lights

Landscape Lighting

Solar energy

Plant lighting

Waterproof Connector M15 F Type Modular Cable With Male Plug Parallel Connection 1 to 3 Socket

wuhudinglian Waterproof Connector M15 F Type Modular Cable With Male Plug Parallel Connection 1 to 3 Socket

Waterproof Connector M15 F Modular Cable With Male Plug Series Connection 1 to 4 Socket

wuhudinglian Waterproof Connector M15 F Modular Cable With Male Plug Series Connection 1 to 4 Socket

Waterproof M15 F Type Connector Modular Cable With Male Plug Series Connection 1 to 5 Socket

wuhudinglian Waterproof M15 F Type Connector Modular Cable With Male Plug Series Connection 1 to 5 Socket

M15 F Type Connectors with Molding Tin The End Of The Module Wire Series Connection 1 to 5 2pin Waterproof Socket

wuhudinglian M15 F Type Connectors with Molding Tin The End Of The Module Wire Series Connection 1 to 5 2pin Waterproof Socket
