As technology continues to advance, industries rely more heavily on electronic components to facilitate communication and control systems. One of the most critical components in any electrical system is the connector, which links various components and ensures the system functions as intended. In recent years, M12 Male Female 4pin Plastic Type Waterproof Connectors have become increasingly popular for their ability to provide reliable connectivity in harsh environments. This article will explore what these connectors are, their benefits, the different types available, their technical specifications, and their various applications.
What are M12 Male Female 4pin Plastic Type Waterproof Connectors and Their Benefits
M12 Male Female 4pin Plastic Type Waterproof Connectors are a type of connector that enables the transfer of data, power, and signal in electronic systems. They have four pins, which can be used for multiple purposes, such as power and signal transmission. These connectors are designed to be waterproof, dustproof, and resistant to vibrations, making them ideal for use in harsh industrial environments.
One of the most significant benefits of M12 Male Female 4pin Plastic Type Waterproof Connectors is their ability to function reliably in wet or dusty conditions. They are rated with an IP67 rating, meaning they are completely protected from dust and can withstand immersion in water up to a depth of one meter for 30 minutes. Additionally, the connectors' plastic housing is resistant to corrosion, making them a cost-effective solution that requires minimal maintenance.
Understanding the Types of M12 Male Female Plastic Type Waterproof Connectors

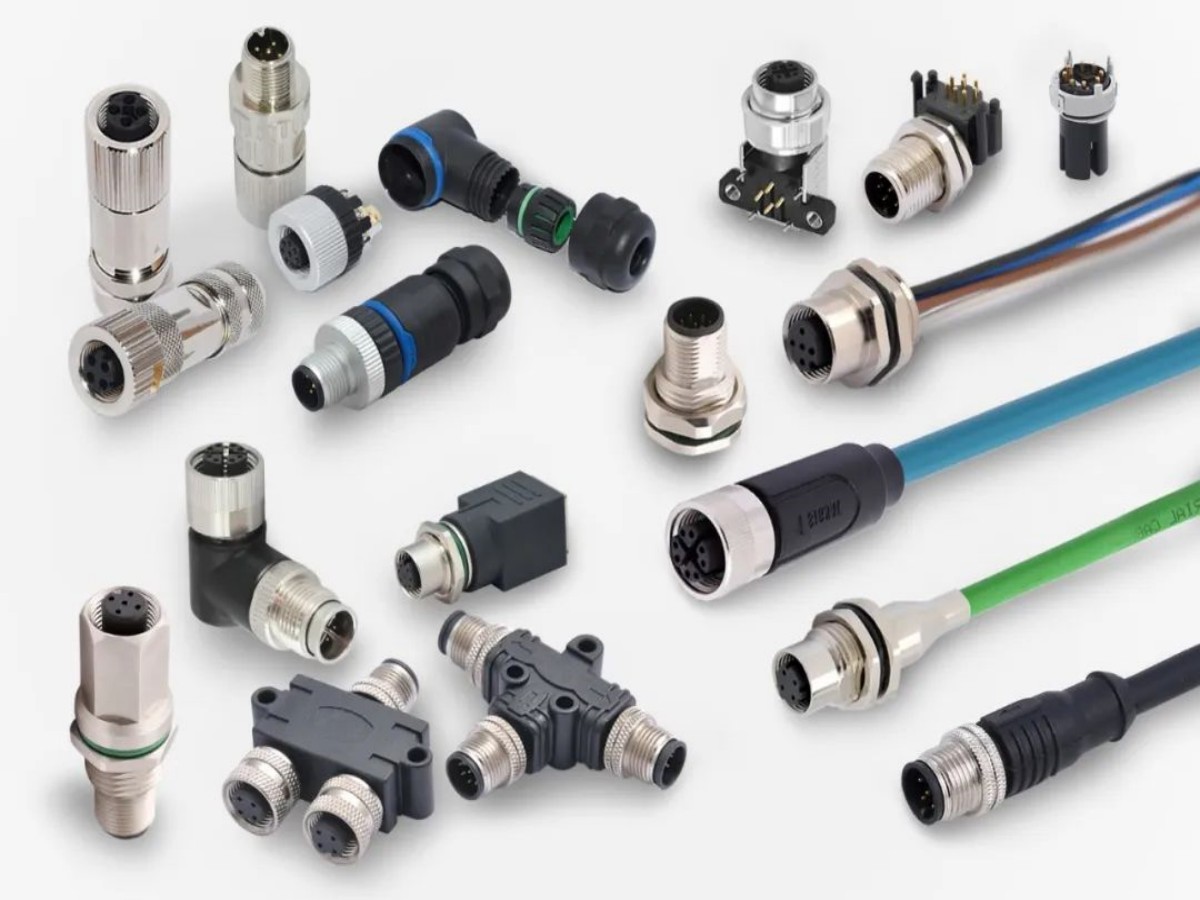

M12 Male Female 4pin Plastic Type Waterproof Connectors come in various types, each designed for a specific purpose. Some of the most common types include:
Straight Connectors: These connectors have a straight body, making them ideal for situations where space is limited. They are easy to install and offer excellent cable retention.
Angled Connectors: Angled connectors are designed to be used in applications where the cable needs to be routed in a specific direction. They come in various angles, from 45 to 90 degrees, and are ideal for tight spaces where straight connectors cannot fit.
Panel Mount Connectors: These connectors are designed to be mounted on a panel or a surface. They offer a secure connection and are easy to install and remove.
Field-attachable Connectors: Field-attachable connectors are designed to be assembled on-site. They come in handy in applications where pre-wired connectors are not available.
Overmolded Connectors: Overmolded connectors are encased in a single-piece plastic body, making them resistant to shock and vibration. They offer excellent protection against environmental factors and are ideal for use in rugged industrial environments.
At present, the M12 Series Male Female waterproof connector available to buy at Kunshan Dinglian Electronic Technology company have but not limited to these types: M12 Male Female Meta Type 6Pin, M12 Male Female Plastic Type 2+3pin, M12 Male Female Plastic Type 4pin, M12 Male Female Plastic Type 3pin, M12 Male Female Plastic Type 2pin, M12 Male Female Meta Type 2+3pin, M12 Male Female Meta Type 4pin, M12 Male Female Meta Type 3pin, M12 Male Female Meta Type 2pin, M12 Male Socket Plastic Type, M12 Male Female Plastic Type, M12 Male Female Meta Type.
The parameters of M12 Male Female 4pin Plastic Type Waterproof Connectors
To select the appropriate M12 Male Female 4pin Plastic Type Waterproof Connector, it is essential to understand their technical specifications. The following are the parameters of these connectors:
- Connector Number of Poles - 4pin
M12 Male Female 4pin Plastic Type Waterproof Connectors come with four pins that can be used for power and signal transmission.
- Connector Rated Voltage – 125V
The rated voltage of these connectors is 125V, making them suitable for use in low voltage applications.
- Connector Rated Current - 10A
The connectors can handle a maximum current of 10A, making them suitable for powering various devices.
- Connector Wire Section - 0.5 - 1.0mm²
The wire section of these connectors ranges from 0.5mm² to 1.0mm². It is essential to ensure that the wire section matches the device's power requirements.
- Connector Temperature Range -40℃ - 105℃
M12 Male Female 4pin Plastic Type Waterproof Connectors can operate within a temperature range of -40℃ to 105℃, making them suitable for use in extreme temperatures.
- Connector IP Code - IP67
The connectors are rated with an IP67 rating, meaning they are dustproof and can withstand immersion in water up to one meter for 30 minutes.
- Connector Housing Materials - PA66
The connectors' housing is made of PA66 material, which is a thermoplastic nylon that offers excellent resistance to abrasion and impact.
- Connector Contact/Terminal Material - Gold Plated Copper Alloy
The connectors' contacts are made of copper alloy, which offers excellent conductivity and is resistant to corrosion.
The Application of M12 Male Female 4pin Plastic Type Waterproof Connectors
M12 Male Female 4pin Plastic Type Waterproof Connectors are used in various applications, including:
Street lights: M12 connectors are used in street lights to connect the power supply and control circuits. Their waterproof and dustproof nature makes them ideal for use in outdoor environments.
Landscape lighting: These connectors are used in landscape lighting to connect the lights to the power supply and control circuits. They offer reliable connectivity and are resistant to environmental factors.
Solar energy: M12 connectors are used in solar energy systems to connect the solar panels to the power supply and control circuits. They are waterproof and resistant to environmental factors, making them ideal for use in outdoor environments.
Industrial automation: These connectors are used in industrial automation systems to connect sensors, actuators, and other devices. Their waterproof and dustproof nature makes them ideal for use in harsh industrial environments.
How to Install and Use an M12 Male Female 4pin Plastic Type Waterproof Connector
To install and use an M12 Male Female 4pin Plastic Type Waterproof Connector, follow these steps:
Ensure that the connector and cable match the device's power requirements.
Strip the cable's insulation to expose the wires.
Insert the wires into the connector's terminal block, ensuring that they are correctly aligned.
Tighten the screws on the connector to secure the wires.
Test the connection to ensure it is secure and reliable.
Install the connector onto the device or panel.
Connect the other end of the cable to the power supply or control circuit.
Test the system to ensure it functions as intended.
In conclusion, M12 Male Female 4pin Plastic Type Waterproof Connectors are essential components in any electrical system that require reliable connectivity in harsh environments. Their ability to stand up to environmental factors such as water, dust, and vibrations makes them ideal for use in various applications, including street lights, landscape lighting, solar energy, and industrial automation. To select the appropriate connector, it is essential to consider its technical specifications, such as the number of poles, rated voltage, rated current, wire section, temperature range, IP rating, housing material, and contact/terminal material. When installing and using these connectors, it is essential to ensure that the cable and connector match the device's power requirements and to test the connection to ensure it is secure and reliable.
